目前东亚及其周边海域还无公开的高分辨率区域再分析资料,但对该地区的高分辨率区域再分析的需求日益增长.该文使用天气研究与预报模式(WRF)和格点统计插值(GSI)同化系统搭建东亚区域再分析系统(EARS),并用三维变分和部分循环同化的方式研制一年再分析试验数据; 进而使用气象信息综合分析处理系统(MICAPS)的站点观测资料、欧洲中期天气预报中心再分析5(ERA5)的全球再分析资料、热带降水测量任务(TRMM)的降水资料对一年试验数据进行初步评估.评估结果表明:一年再分析试验数据能较好地表征大气状况,其模拟效果接近甚至优于ERA5; 在500 hPa层面上,EARS与ERA5所得结果在环流分布上基本一致,但对青藏高原及印度季风区的模拟效果则有差异; 在降水评估中,EARS与TRMM的降水分布和强降水中心均能较好地对应.

There is no publicly available high-resolution regional reanalysis in East Asia and its nearby coastal zones.However,the demands for high-resolution regional reanalysis in this area are increasing.Using weather research and forecasting(WRF)model and gridpoint statistical interpolation(GSI),East Asian regional reanalysis system(EARS)was set up.With three-dimensional variational data assimilation and partial cycling mode,a one-year experimental dataset was generated.By comparing with meteorology information comprehensive analysis process system(MICAPS)station observation data,European Center for Medium-rarge Weather Forecasts reanalysis 5(ERA5)global reanalysis data,and tropical rainfall measuring mission(TRMM)precipitation data,the one-year experimental dataset was evaluated.The one-year experimental reanalysis dataset can represent the status of atmosphere well,and its simulation result is close to that of ERA5 and even better.At the 500 hPa level,the circulation patterns of EARS and ERA5 are virtually coincident,but the simulations over Tibetan Plateau and Indian monsoon area are different.In the precipitation assessment,the patterns of precipitation and the centers of heavy precipitation of EARS and TRMM are consistent.

引言
1 EARS介绍
2 初步评估
3 结论

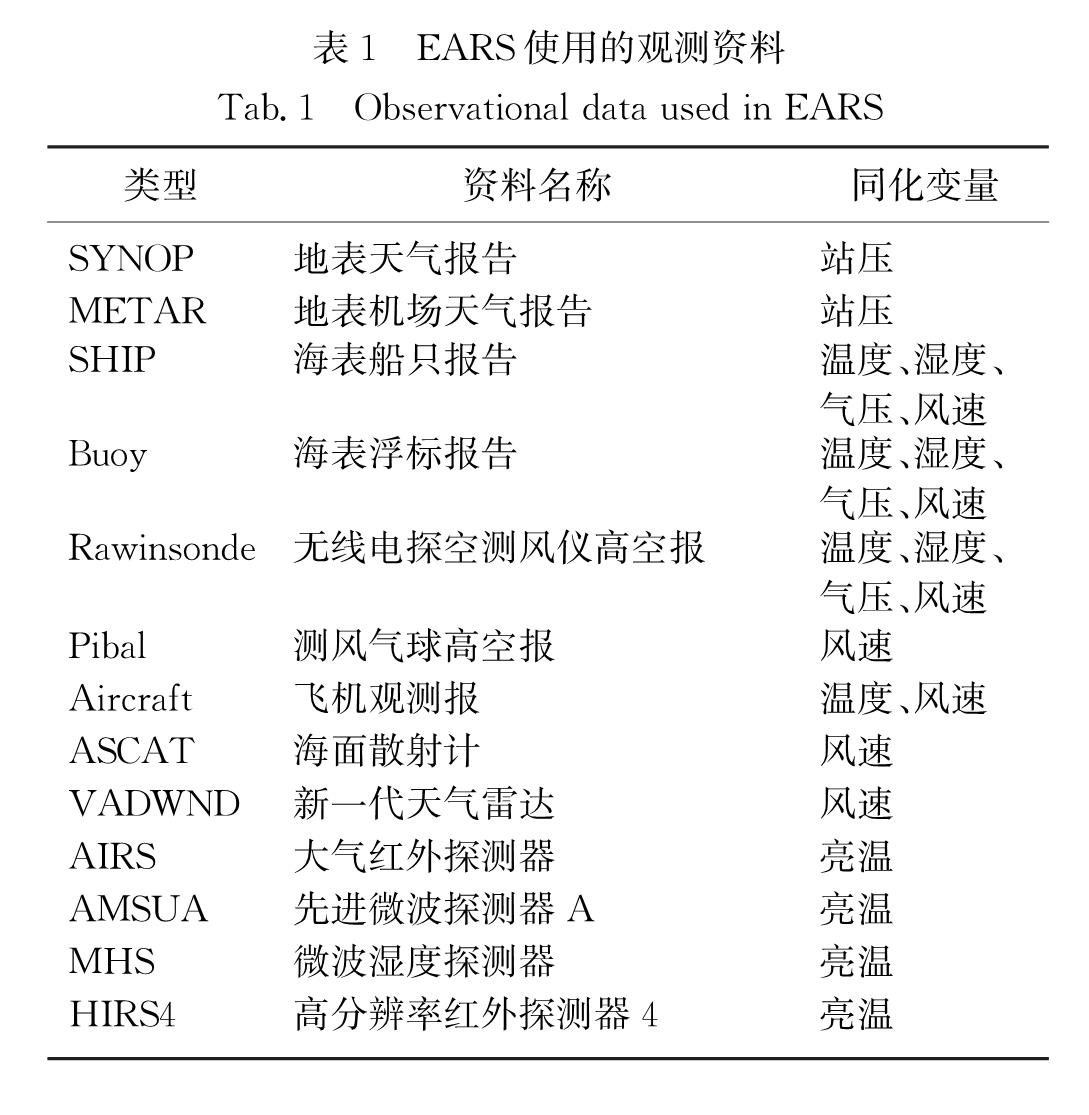

表1 EARS使用的观测资料<br/>Tab.1 Observational data used in EARS

表1 EARS使用的观测资料
Tab.1 Observational data used in EARS

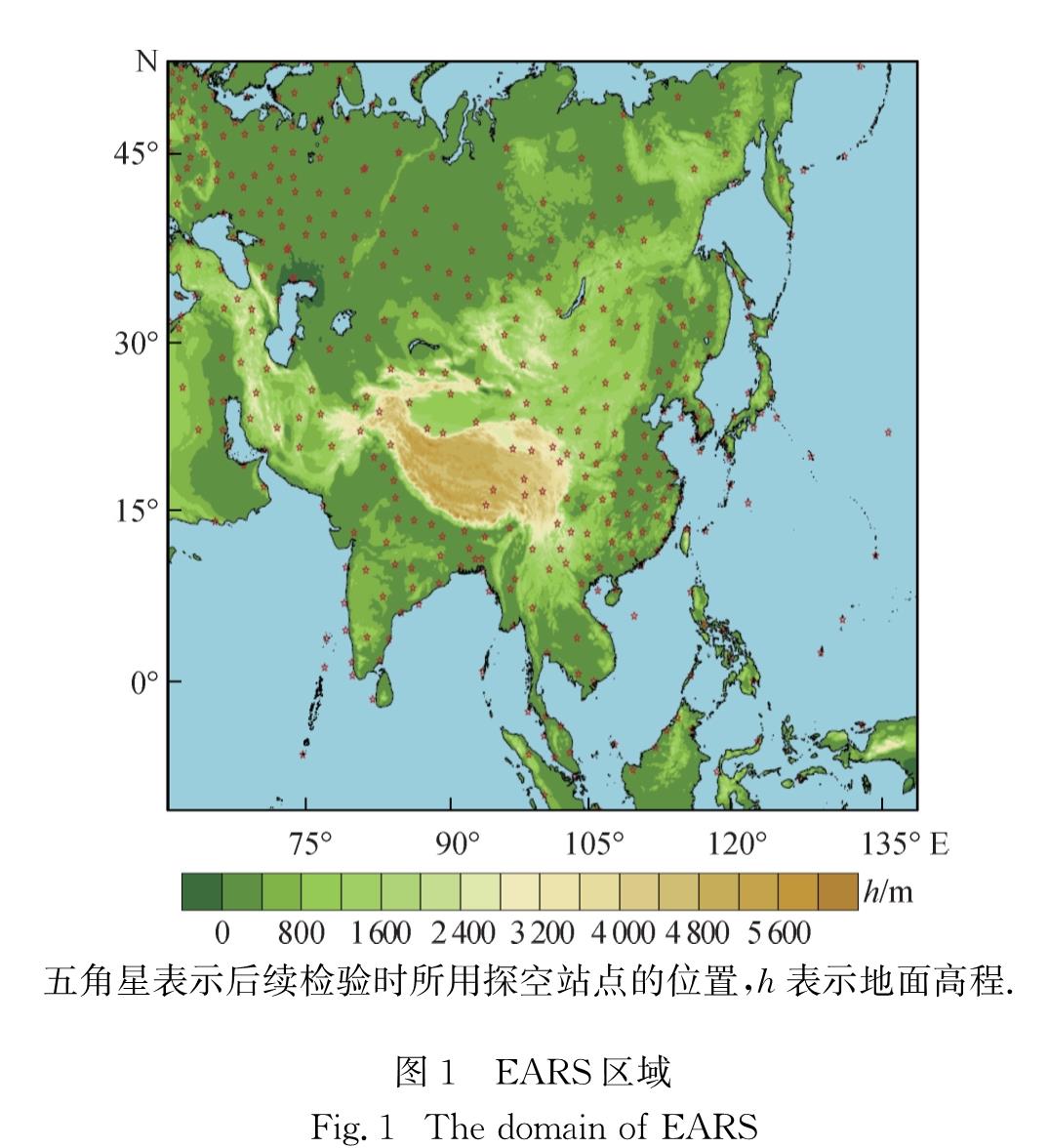

图1 EARS区域
Fig.1 The domain of EARS

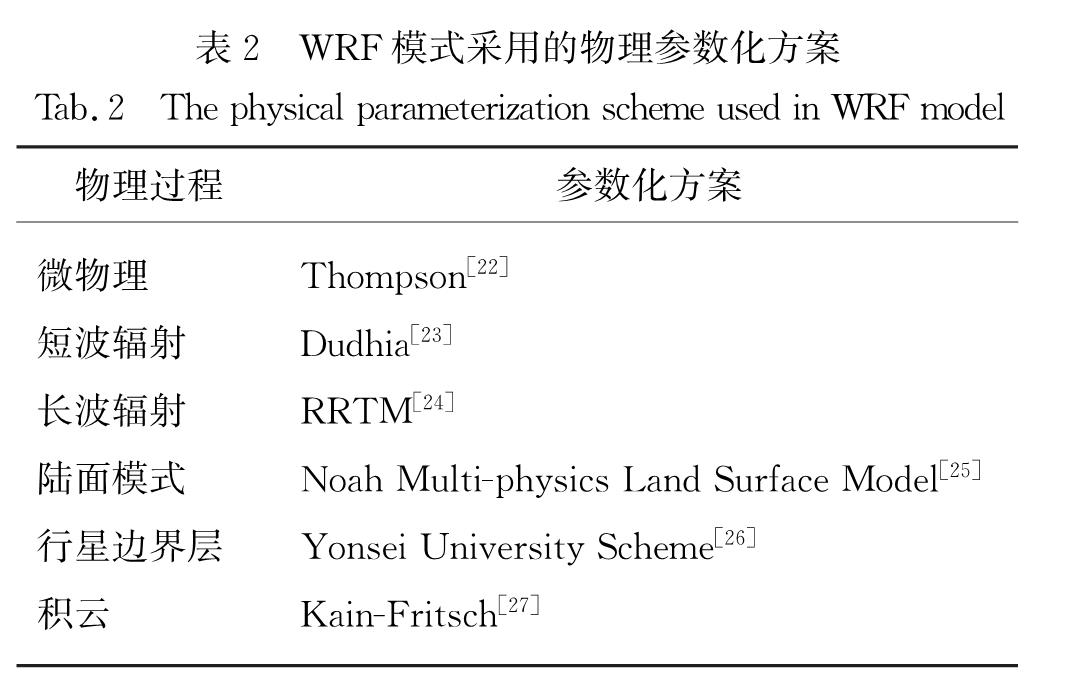

表2 WRF模式采用的物理参数化方案<br/>Tab.2 The physical parameterization scheme used in WRF model

表2 WRF模式采用的物理参数化方案
Tab.2 The physical parameterization scheme used in WRF model

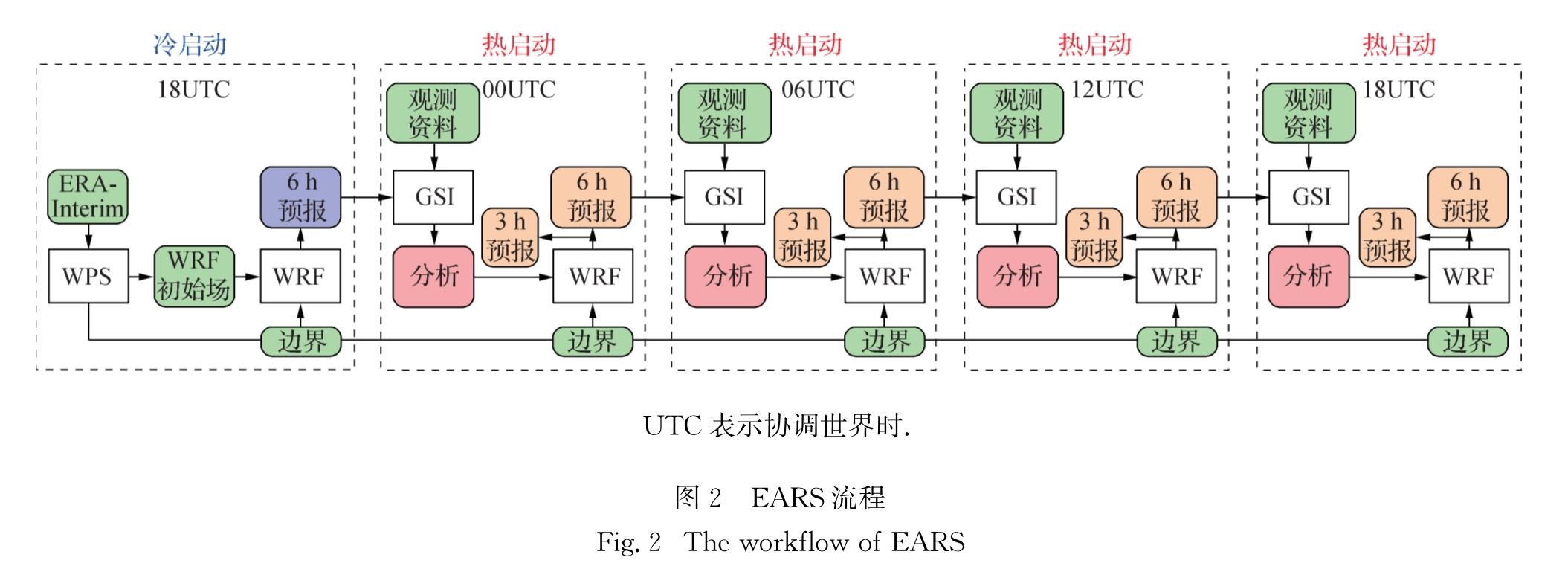

图2 EARS流程<br/>Fig.2 The workflow of EARS

图2 EARS流程
Fig.2 The workflow of EARS

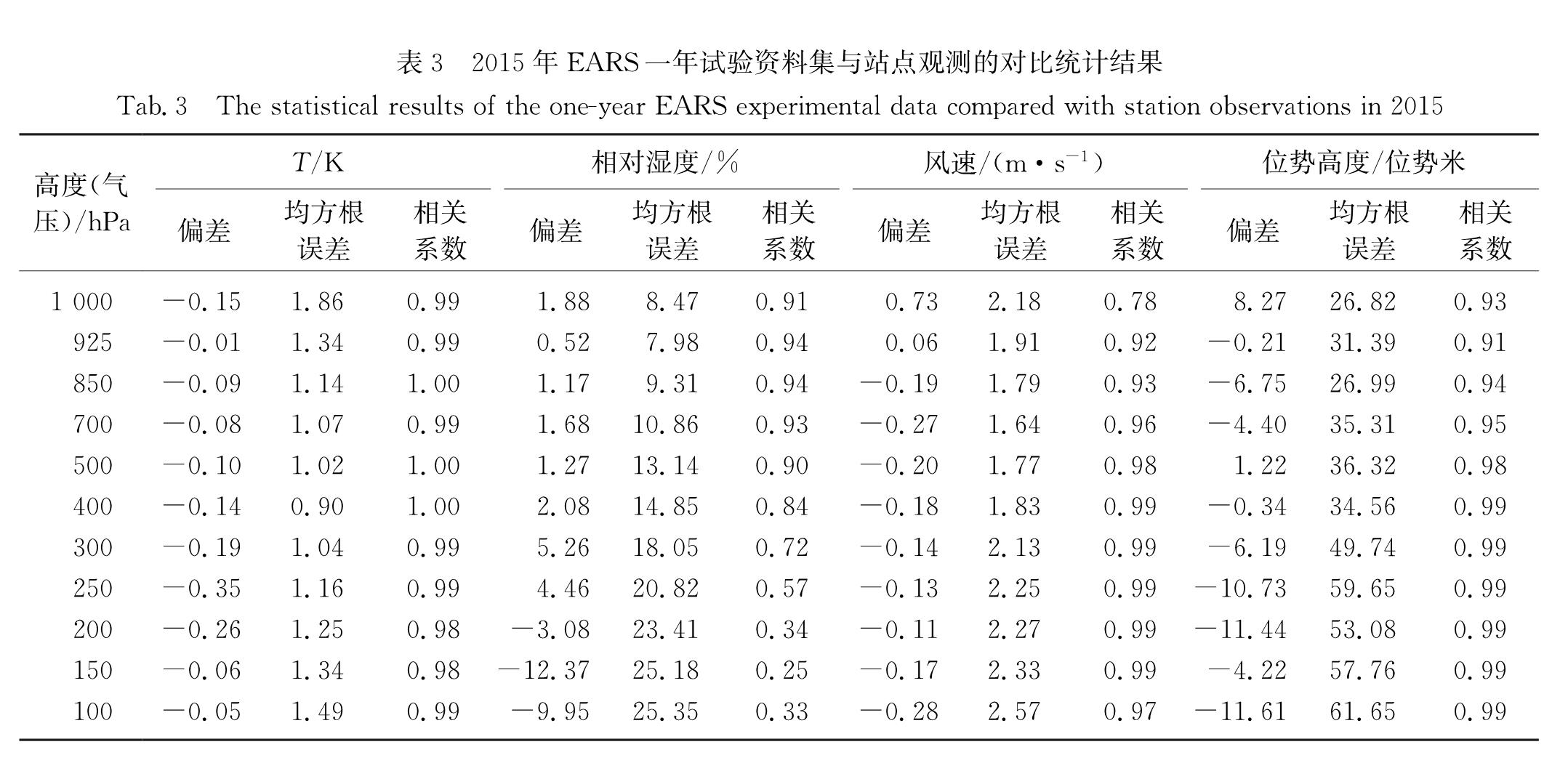

表3 2015年EARS一年试验资料集与站点观测的对比统计结果<br/>Tab.3 The statistical results of the one-year EARS experimental data compared with station observations in 2015

表3 2015年EARS一年试验资料集与站点观测的对比统计结果
Tab.3 The statistical results of the one-year EARS experimental data compared with station observations in 2015

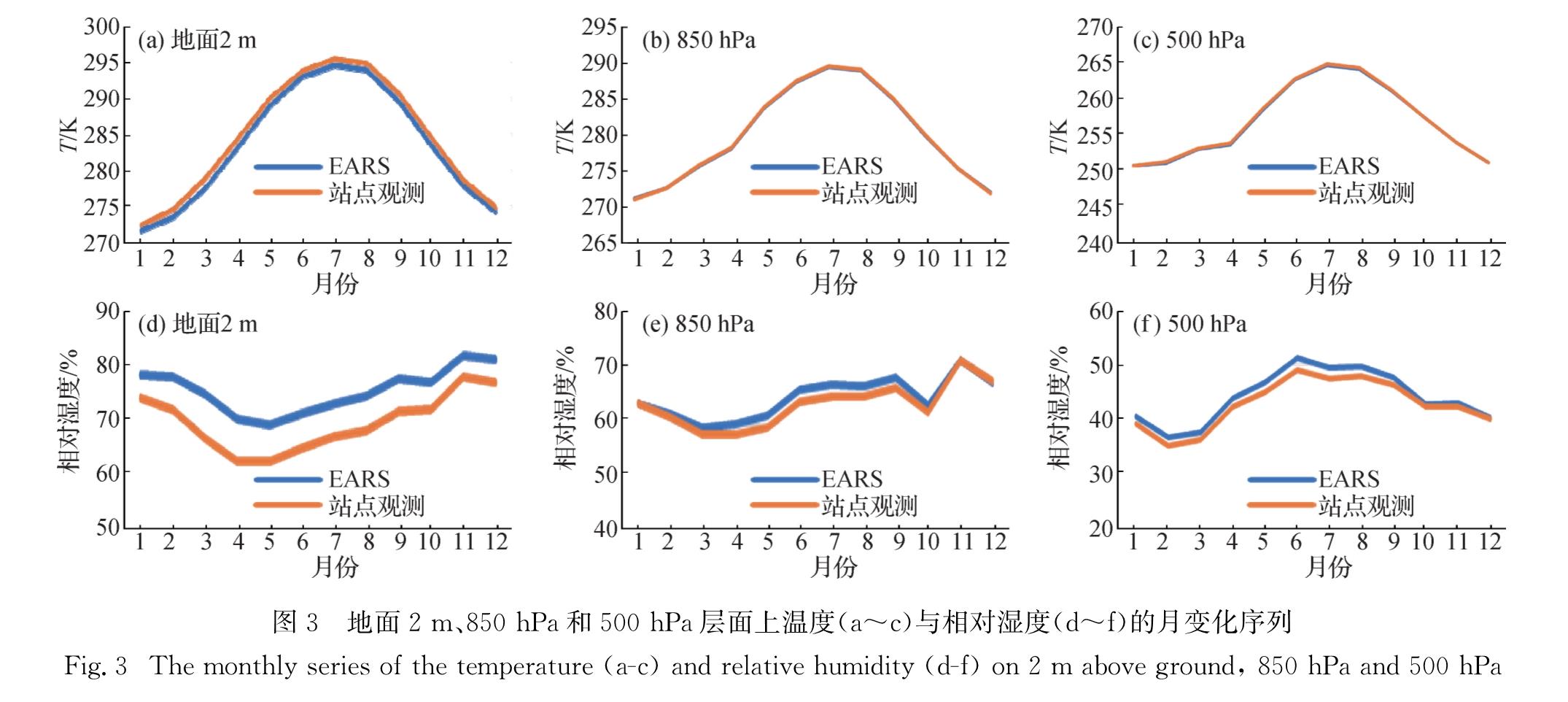

图3 地面2 m、850 hPa和500 hPa层面上温度(a～c)与相对湿度(d～f)的月变化序列<br/>Fig.3 The monthly series of the temperature(a-c)and relative humidity(d-f)on 2 m above ground, 850 hPa and 500 hPa

图3 地面2 m、850 hPa和500 hPa层面上温度(a～c)与相对湿度(d～f)的月变化序列
Fig.3 The monthly series of the temperature(a-c)and relative humidity(d-f)on 2 m above ground, 850 hPa and 500 hPa

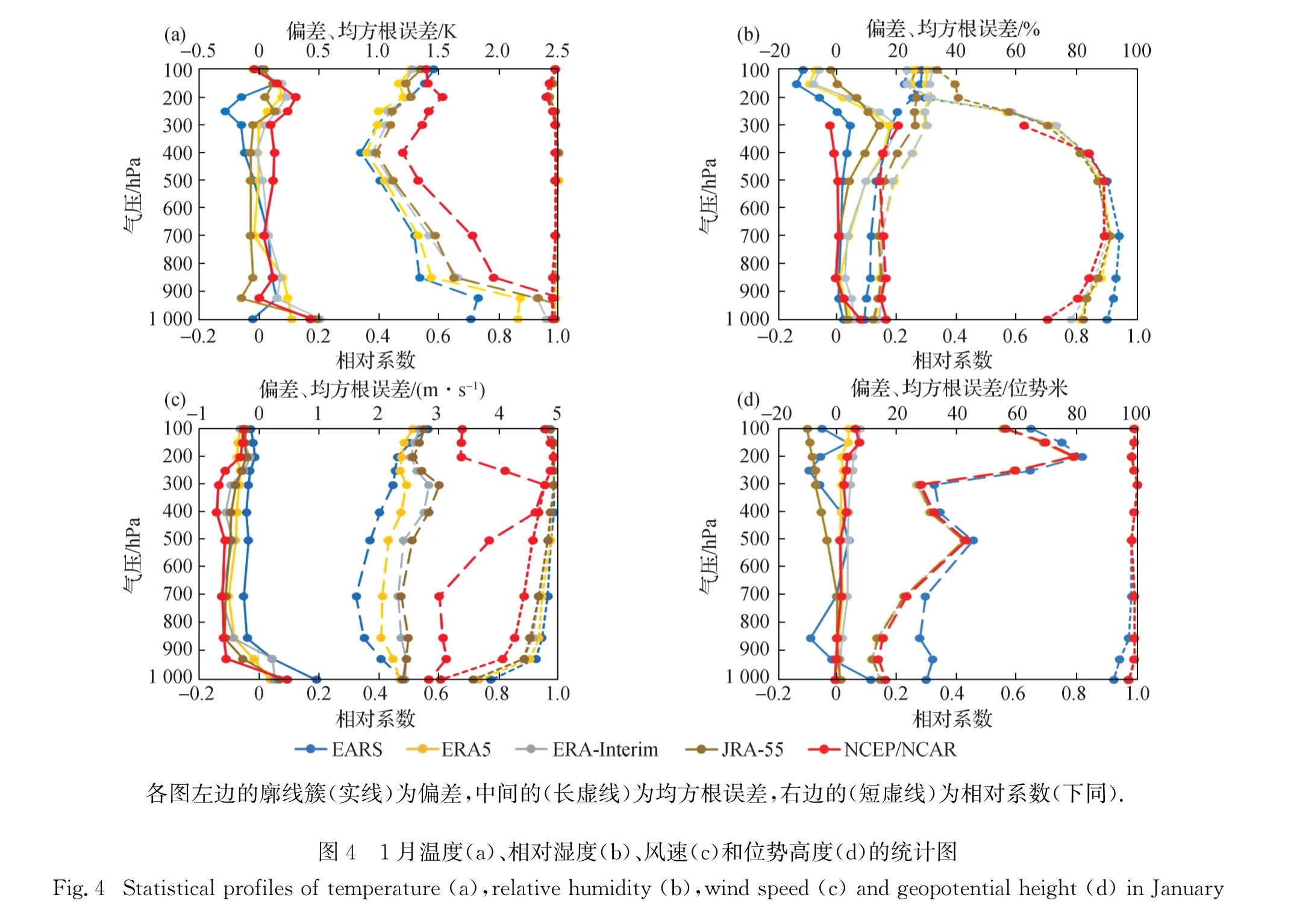

图4 1月温度(a)、相对湿度(b)、风速(c)和位势高度(d)的统计图<br/>Fig.4 Statistical profiles of temperature(a),relative humidity(b),wind speed(c)and geopotential height(d)inJanuary

图4 1月温度(a)、相对湿度(b)、风速(c)和位势高度(d)的统计图
Fig.4 Statistical profiles of temperature(a),relative humidity(b),wind speed(c)and geopotential height(d)inJanuary

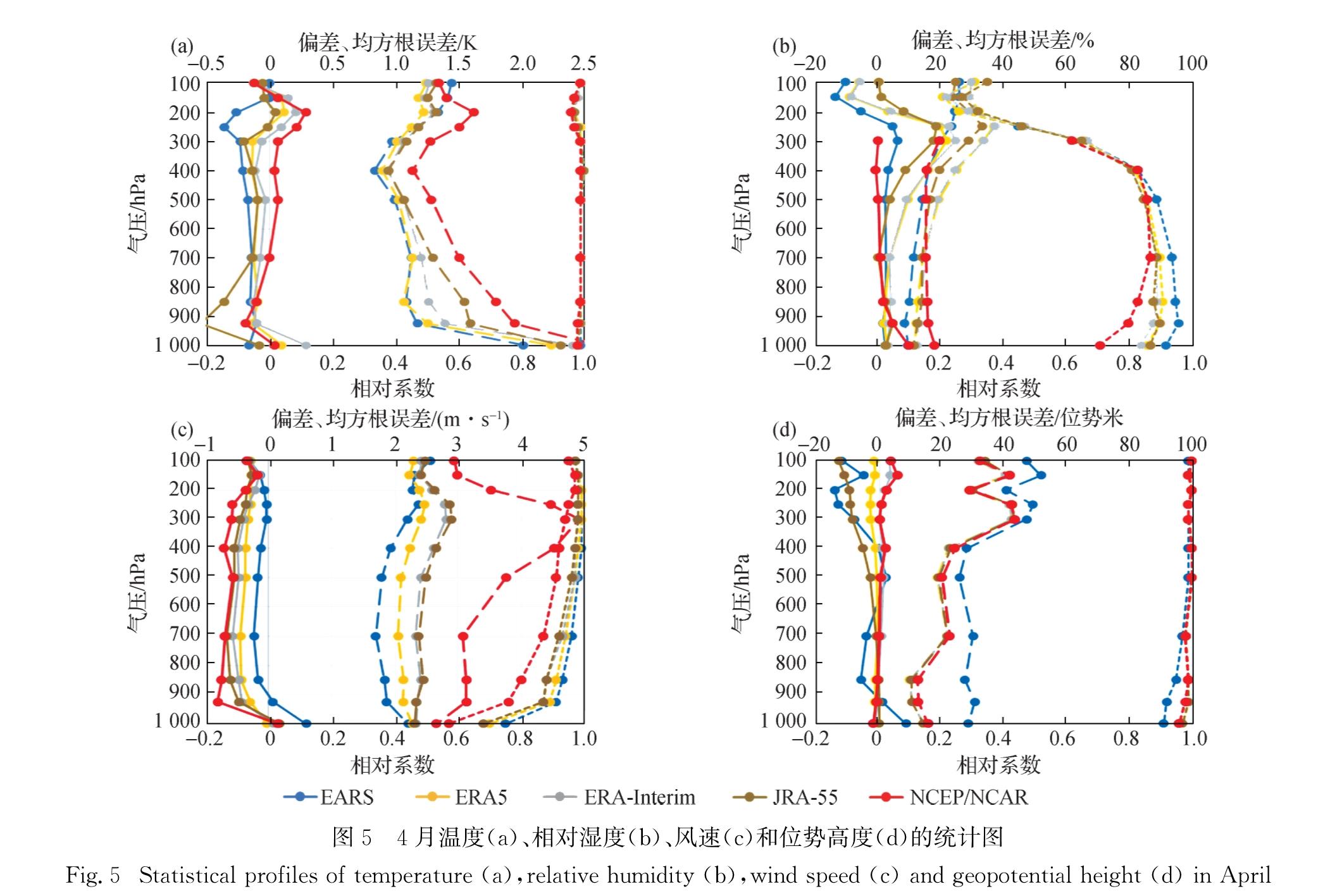

图5 4月温度(a)、相对湿度(b)、风速(c)和位势高度(d)的统计图<br/>Fig.5 Statistical profiles of temperature(a),relative humidity(b),wind speed(c)and geopotential height(d)inApril

图5 4月温度(a)、相对湿度(b)、风速(c)和位势高度(d)的统计图
Fig.5 Statistical profiles of temperature(a),relative humidity(b),wind speed(c)and geopotential height(d)inApril

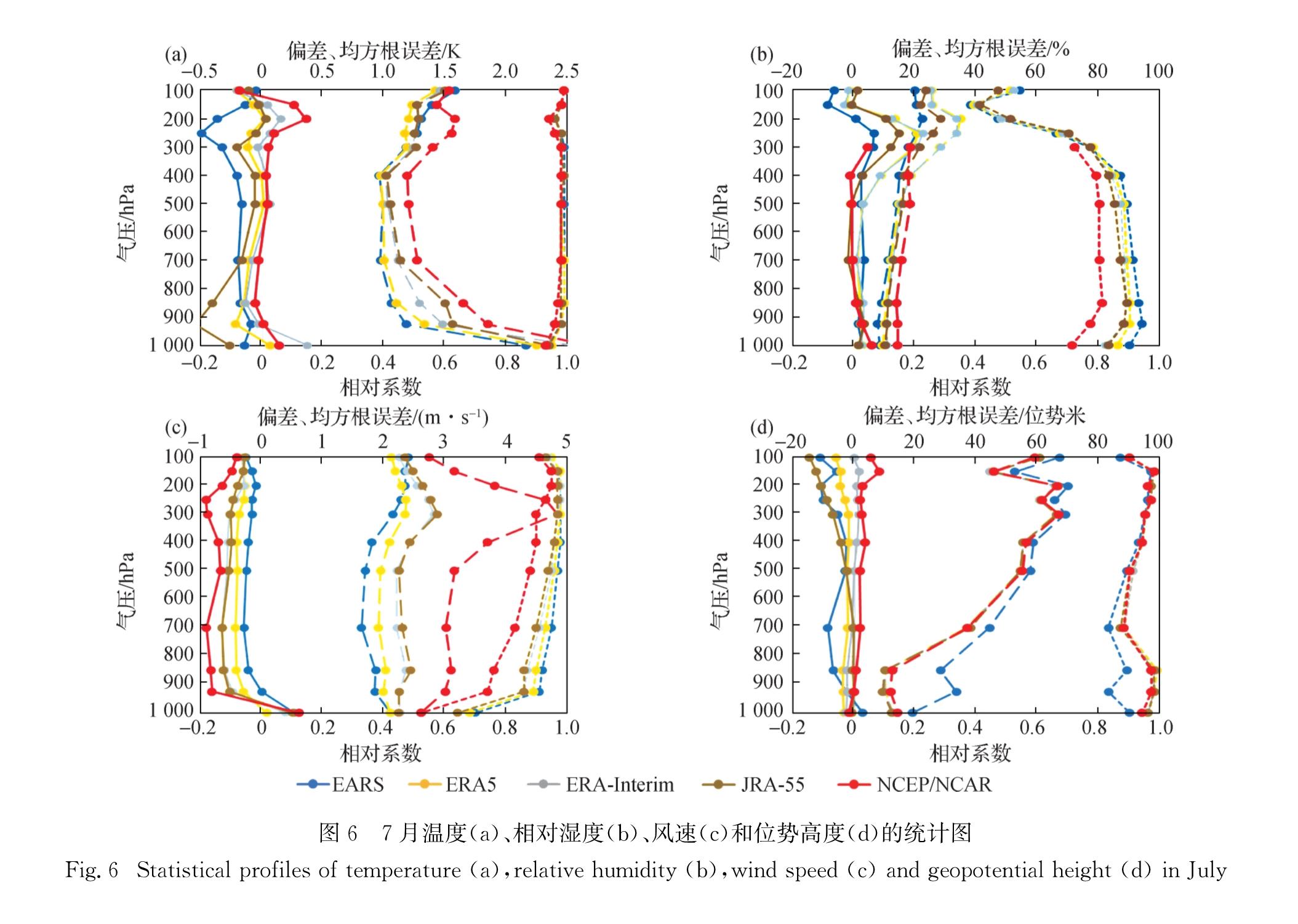

图6 7月温度(a)、相对湿度(b)、风速(c)和位势高度(d)的统计图<br/>Fig.6 Statistical profiles of temperature(a),relative humidity(b),wind speed(c)and geopotential height(d)inJuly

图6 7月温度(a)、相对湿度(b)、风速(c)和位势高度(d)的统计图
Fig.6 Statistical profiles of temperature(a),relative humidity(b),wind speed(c)and geopotential height(d)inJuly

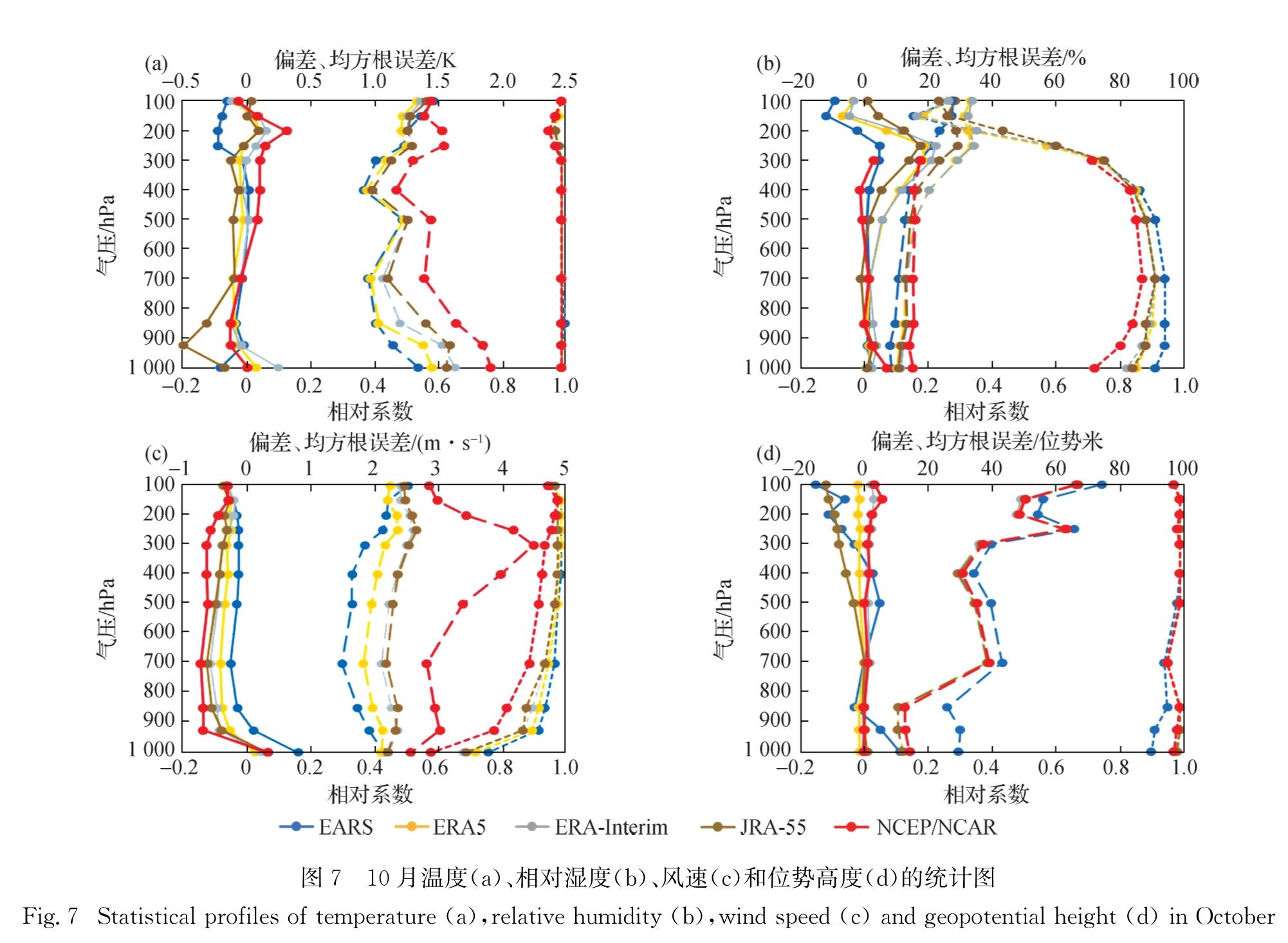

图7 10月温度(a)、相对湿度(b)、风速(c)和位势高度(d)的统计图<br/>Fig.7 Statistical profiles of temperature(a),relative humidity(b),wind speed(c)and geopotential height(d)inOctober

图7 10月温度(a)、相对湿度(b)、风速(c)和位势高度(d)的统计图
Fig.7 Statistical profiles of temperature(a),relative humidity(b),wind speed(c)and geopotential height(d)inOctober

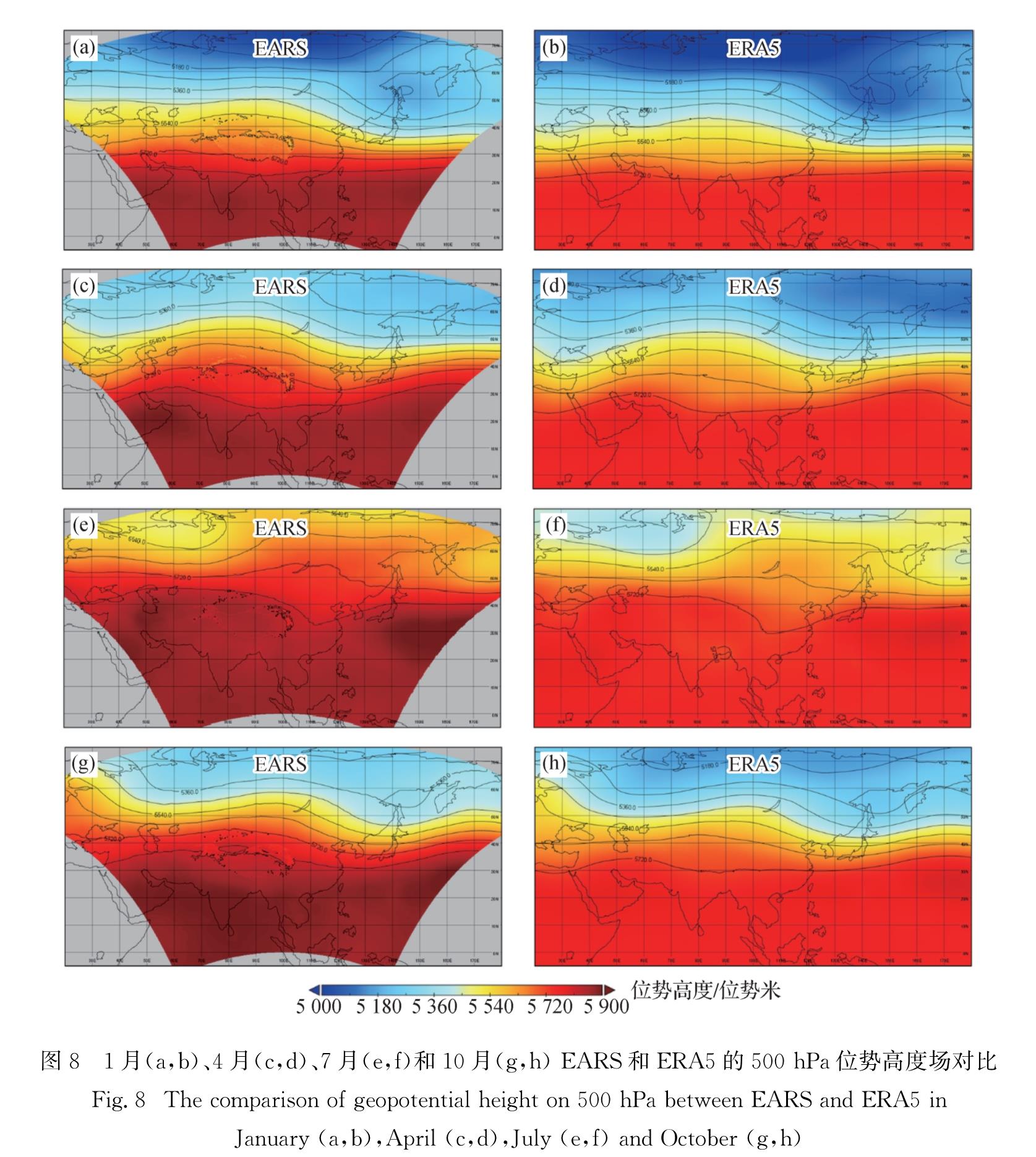

图8 1月(a,b)、4月(c,d)、7月(e,f)和10月(g,h)EARS和ERA5的500 hPa位势高度场对比<br/>Fig.8 The comparison of geopotential height on 500 hPa between EARS and ERA5 in January(a,b),April(c,d),July(e,f)and October(g,h)

图8 1月(a,b)、4月(c,d)、7月(e,f)和10月(g,h)EARS和ERA5的500 hPa位势高度场对比
Fig.8 The comparison of geopotential height on 500 hPa between EARS and ERA5 in January(a,b),April(c,d),July(e,f)and October(g,h)

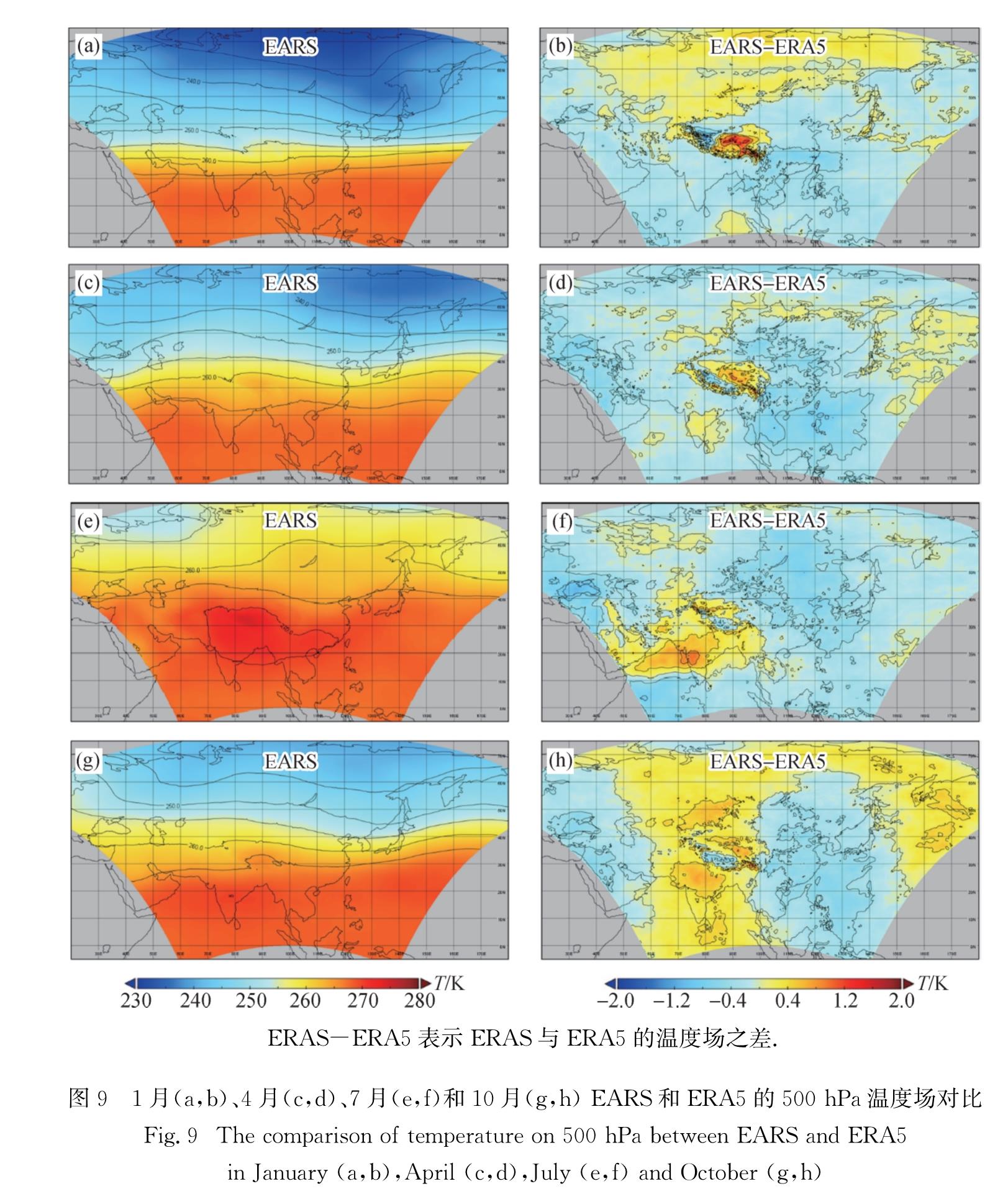

图9 1月(a,b)、4月(c,d)、7月(e,f)和10月(g,h)EARS和ERA5的500 hPa温度场对比<br/>Fig.9 The comparison of temperature on 500 hPa between EARS and ERA5 in January(a,b),April(c,d),July(e,f)and October(g,h)

图9 1月(a,b)、4月(c,d)、7月(e,f)和10月(g,h)EARS和ERA5的500 hPa温度场对比
Fig.9 The comparison of temperature on 500 hPa between EARS and ERA5 in January(a,b),April(c,d),July(e,f)and October(g,h)

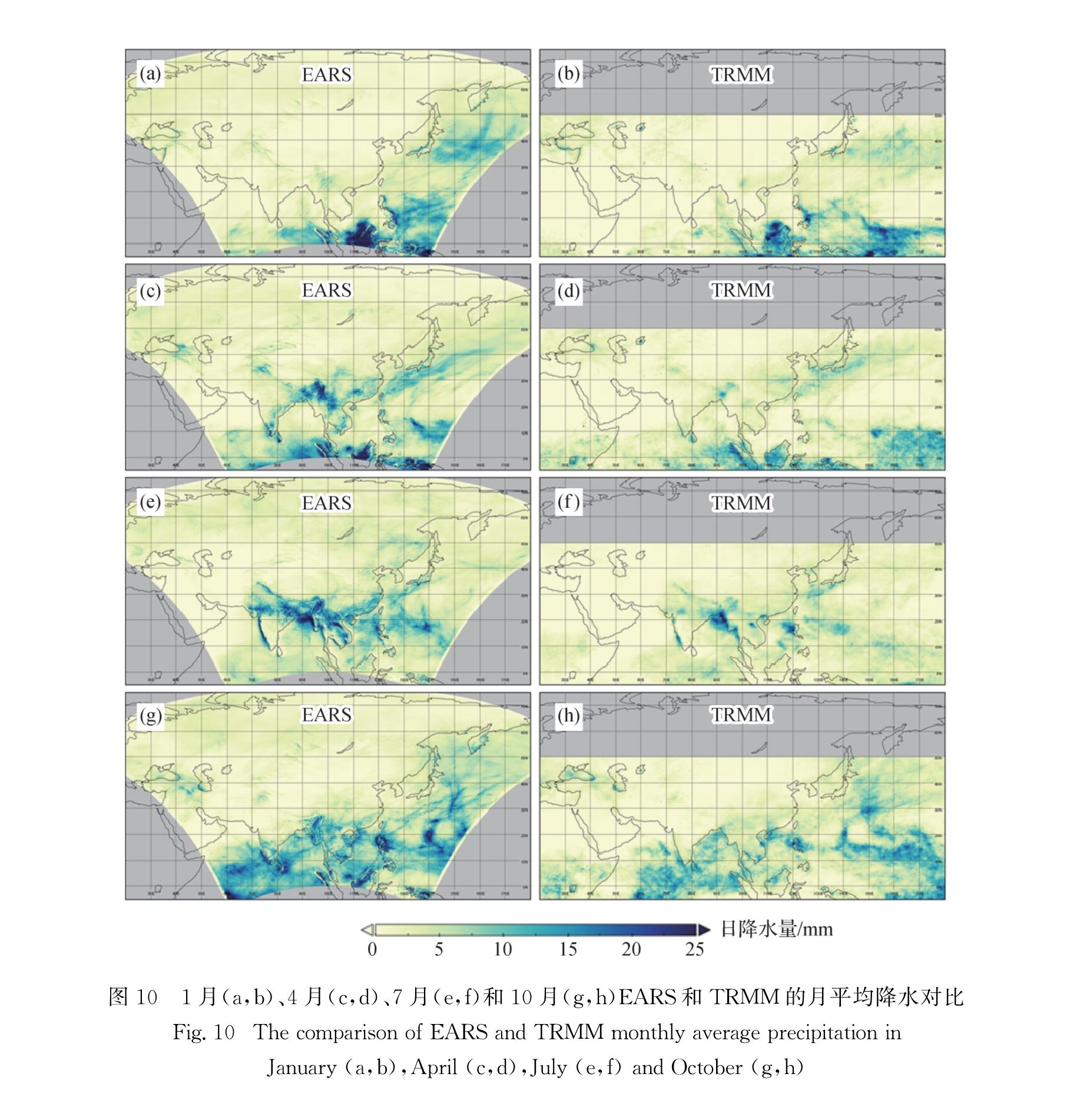

图10 1月(a,b)、4月(c,d)、7月(e,f)和10月(g,h)EARS和TRMM的月平均降水对比<br/>Fig.10 The comparison of EARS and TRMM monthly average precipitation in January(a,b),April(c,d),July(e,f)and October(g,h)

图10 1月(a,b)、4月(c,d)、7月(e,f)和10月(g,h)EARS和TRMM的月平均降水对比
Fig.10 The comparison of EARS and TRMM monthly average precipitation in January(a,b),April(c,d),July(e,f)and October(g,h)

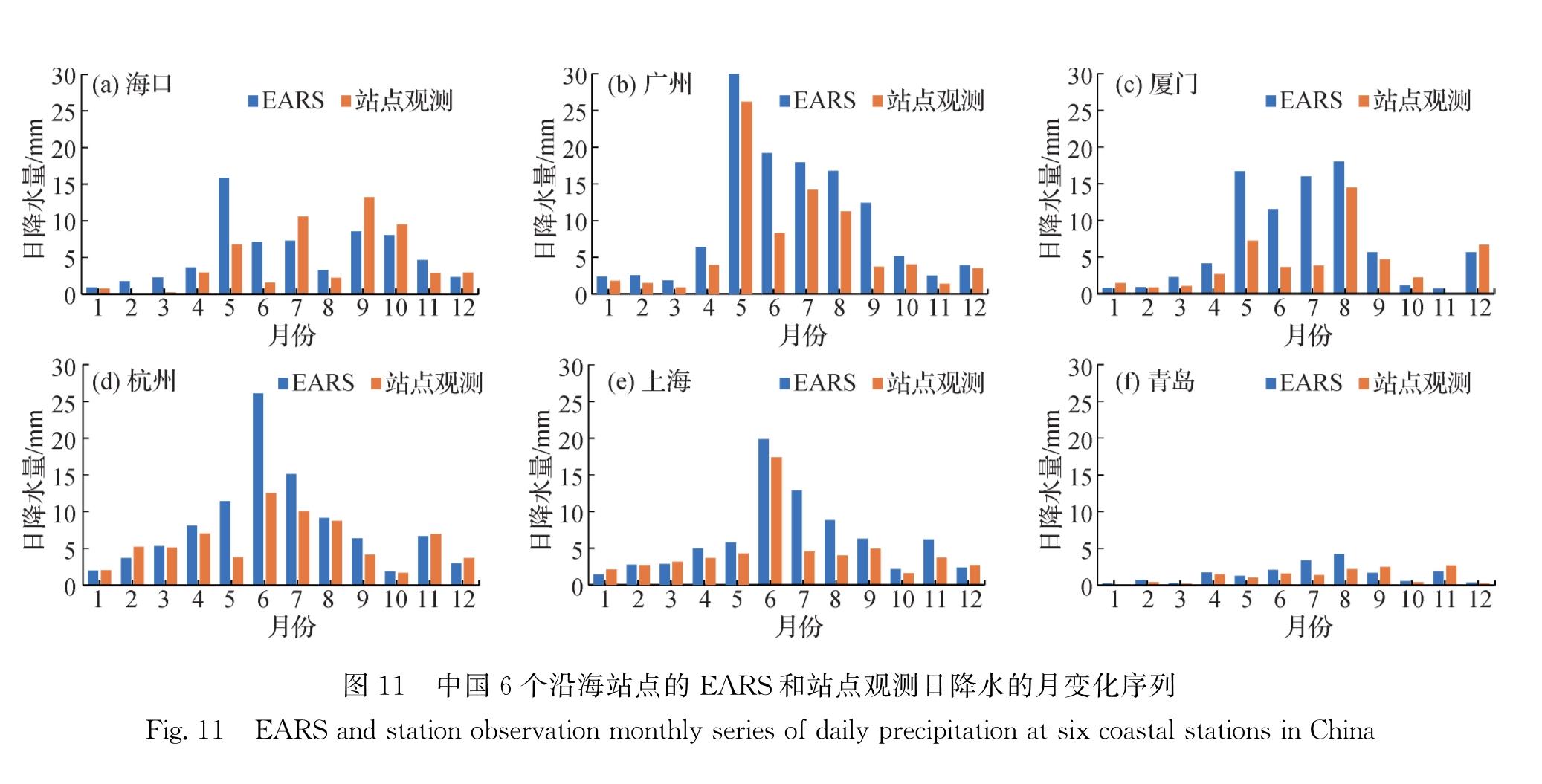

图11 中国6个沿海站点的EARS和站点观测日降水的月变化序列<br/>Fig.11 EARS and station observation monthly series of daily precipitation at six coastal stations in China

图11 中国6个沿海站点的EARS和站点观测日降水的月变化序列
Fig.11 EARS and station observation monthly series of daily precipitation at six coastal stations in China

[1] DEE D P,UPPALA S M,SIMMONS A J,et al.The ERA-Interim reanalysis:configuration and performance of the data assimilation system[J].Quarterly Journal of the Royal Meteorological Society,2011,137(656):553-597.
[2] HANS H,BELL W,BERRISFORD P,et al.Global reanalysis:goodbye ERA-Interim,hello ERA5[EB/OL].[2019-12-01].https:∥www.ecmwf.int/node/19027.
[3] KOBAYASHI S,OTA Y,HARADA Y,et al.The JRA-55 reanalysis:general specifications and basic characteristics[J].Journal of the Meteorological Society of Japan Ser Ⅱ,2015,93(1):5-48.
[4] KALNAY E,KANAMITSU M,KISTLER R,et al.The NCEP/NCAR 40-year reanalysis project[J].Bulletin of the American Meteorological Society,1996,77(3):437-471.
[5] KISTLER R,COLLINS W,SAHA S,et al.The NCEP-NCAR 50-year reanalysis:monthly means CD-ROM and documentation[J].Bulletin of the American Meteorological Society,2001,82(2):247-267.
[6] RIENECKER M M,SUAREZ M J,GELARO R,et al.MERRA:NASA's modern-era retrospective analysis for research and applications[J].Journal of Climate,2011,24(14):3624-3648.
[7] GELARO R,MCCARTY W,SUÁREZ M J,et al.The modern-era retrospective analysis for research and applications,version 2(MERRA-2)[J].Journal of Climate,2017,30(14):5419-5454.
[8] SAHA S,MOORTHI S,PAN H,et al.The NCEP climate forecast system reanalysis[J].Bulletin of the American Meteorological Society,2010,91(8):1015-1057.
[9] SAHA S,MOORTHI S,WU X R,et al.The NCEP climate forecast system version 2[J].Journal of Climate,2014,27(6):2185-2208.
[10] MESINGER F,DIMEGO G,KALNAY E,et al.North American regional reanalysis[J].Bulletin of the American Meteorological Society,2006,87(3):343-360.
[11] DAHLGREN P,LANDELIUS T,KÅLLBERG P,et al.A high-resolution regional reanalysis for Europe.Part 1:three-dimensional reanalysis with the regional high-resolution limited-area model(HIRLAM)[J].Quarterly Journal of the Royal Meteorological Society,2016,142(698):2119-2131.
[12] LANDELIUS T,DAHLGREN P,GOLLVIK S,et al.A high-resolution regional reanalysis for Europe.Part 2:2D analysis of surface temperature,precipitation and wind[J].Quarterly Journal of the Royal Meteorological Society,2016,142(698):2132-2142.
[13] BROMWICH D H,WILSON A B,BAI L S,et al.A comparison of the regional arctic system reanalysis and the global ERA-Interim reanalysis for the arctic[J].Quarterly Journal of the Royal Meteorological Society,2016,142(695):644-658.
[14] BROMWICH D H,WILSON A B,BAI L,et al.The arctic system reanalysis,version 2[J].Bulletin of the American Meteorological Society,2018,99(4):805-828.
[15] 姜立鹏.赴美国国家大气研究中心(NCAR)合作研究总结[J].气象科技合作动态,2016(5):37-39.
[16] 张涛.赴美国国家大气研究中心(NCAR)访问工作总结[J].气象科技合作动态,2017(5):23-25.
[17] 尹金方,梁旭东,陈锋,等.东亚区域大气再分析技术研究及资料集建设[J].气象科技进展,2018,8(1):79-84.
[18] ZHANG Q,PAN Y N,WANG S Y,et al.High-resolution regional reanalysis in China:evaluation of 1 year period experiments[J].Journal of Geophysical Research:Atmospheres,2017,122(20):10801-10810,10819.
[19] BOLLMEYER C,KELLER J D,OHLWEIN C,et al.Towards a high-resolution regional reanalysis for the European CORDEX domain[J].Quarterly Journal of the Royal Meteorological Society,2015,141(686):1-15.
[20] ROMINE G S,SCHWARTZ C S,SNYDER C,et al.Model bias in a continuously cycled assimilation system and its influence on convection-permitting forecasts[J].Monthly Weather Review,2013,141(4):1263-1284.
[21] SKAMAROCK W C,KLEMP J B,DUDHIA J,et al.A description of the advanced research WRF version 3:NCAR-475+ STR[R].Boulder:National Center for Atmospheric Research,2008.
[22] THOMPSON G,RASMUSSEN R M,MANNING K.Explicit forecasts of winter precipitation using an improved bulk microphysics scheme.Part Ⅰ:description and sensitivity analysis[J].Monthly Weather Review,2004,132(2):519-542.
[23] DUDHIA J.Numerical study of convection observed during the winter monsoon experiment using a mesoscale two-dimensional model[J].Journal of the Atmospheric Sciences,1989,46(20):3077-3107.
[24] MLAWER E J,TAUBMAN S J,BROWN P D,et al.Radiative transfer for inhomogeneous atmospheres:RRTM,a validated correlated-k model for the longwave[J].Journal of Geophysical Research:Atmospheres,1997,102(D14):16663-16682.
[25] CHEN F,DUDHIA J.Coupling an advanced land surface-hydrology model with the penn state-NCAR MM5 modeling system.Part Ⅰ:model implementation and sensitivity[J].Monthly Weather Review,2001,129(4):569-585.
[26] HONG S Y,NOH Y,DUDHIA J.A new vertical diffusion package with an explicit treatment of entrainment processes[J].Monthly Weather Review,2006,134(9):2318-2341.
[27] KAIN J S.The Kain-Fritsch convective parameterization:an update[J].Journal of Applied Meteorology,2004,43(1):170-181.
[28] SHAO H,DERBER J,HUANG X Y,et al.Bridging research to operations transitions:status and plans of community GSI[J].Bulletin of the American Meteorological Society,2016,97(8):1427-1440.
[29] TRMM(TMPA)rainfall estimate L3 3 hour 0.25 degree×0.25 degree V7,Greenbelt,MD,Goddard Earth Sciences Data and Information Services Center(GES DISC)[EB/OL].[2019-12-01].https:∥doi.org/TRMM/TMPA/3H/7.
