《厦门大学学报（自然科学版）》

严重事故管理导则(SAMGs)是目前缓解核电站严重事故进程的主要依据,而对反应堆一回路进行卸压和注水是严重事故下保证堆芯冷却最常用的策略,但是目前的SAMGs对于外部注水策略并没有给出具体的操作指导.为此,以我国目前广泛应用的CPR1000核电站作为研究对象,以全厂断电叠加小破口失水事故作为基础事故序列,采用模块化严重事故分析程序对其进行建模,并对一回路外部注水策略进行了详细分析.结果表明,根据不同外部注水时间采取合适的卸压速率及注水流量可有效缓解事故进程,使堆芯冷却,防止压力容器失效及大量放射性物质外泄.该研究成果可为完善CPR1000核电站SAMGs中外部注水的具体措施以及核电厂类似事故序列的培训课程提供参考.

Severe accident management guidelines(SAMGs)is the key guidance for alleviating severe accidents in nuclear power plants.Among them,depressurization and water injection for the primary coolant system are the most commonly used strategies to ensure core cooling.However,the current SAMGs have not provided specific operational guidance for external water injection strategy.Thus,in this paper,based on the commonly used CPR1000 nuclear power station in our country, and using station blackout along with small break loss-of-coolant accident as basic accident sequence, a model is established using a modular severe accident analysis code and the external water injection strategies of the primary system is detailedly analized.The results show that proper depressurized rate and water injection flow rate based on different external water injection time can effectively alleviate the process of accident,cool the reactor core,and prevent the failure of pressure vessel and the release of a large amount of radioactivity.The results of this study can provide references for improving specific measures of external water injection in SAMGs of CPR1000 nuclear power station and for the training courses of similar accident sequences in nuclear power plants.

引言
1 模型和假设
2 结果与讨论
3 结论

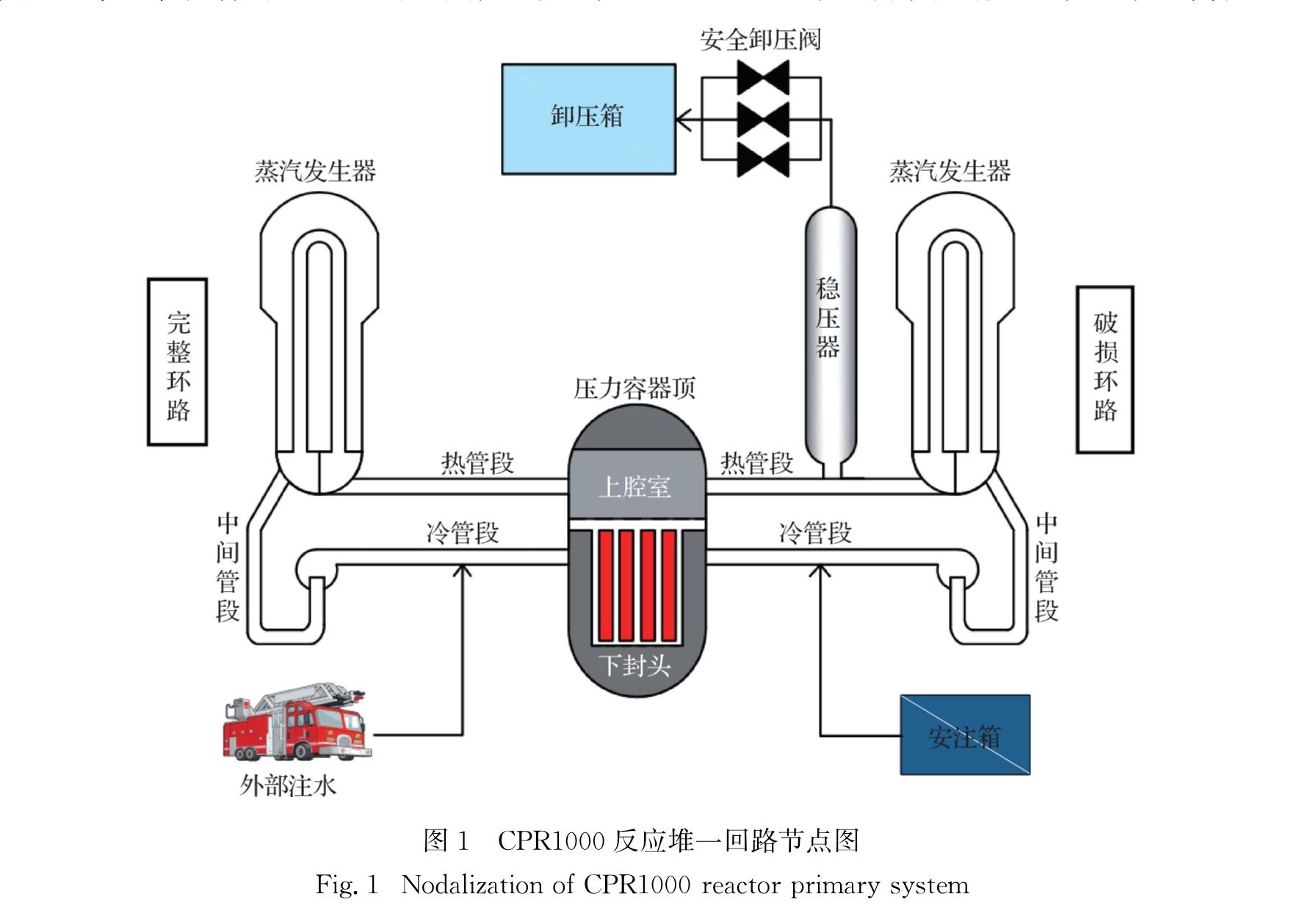

图1 CPR1000反应堆一回路节点图<br/>Fig.1 Nodalization of CPR1000 reactor primary system

图1 CPR1000反应堆一回路节点图
Fig.1 Nodalization of CPR1000 reactor primary system

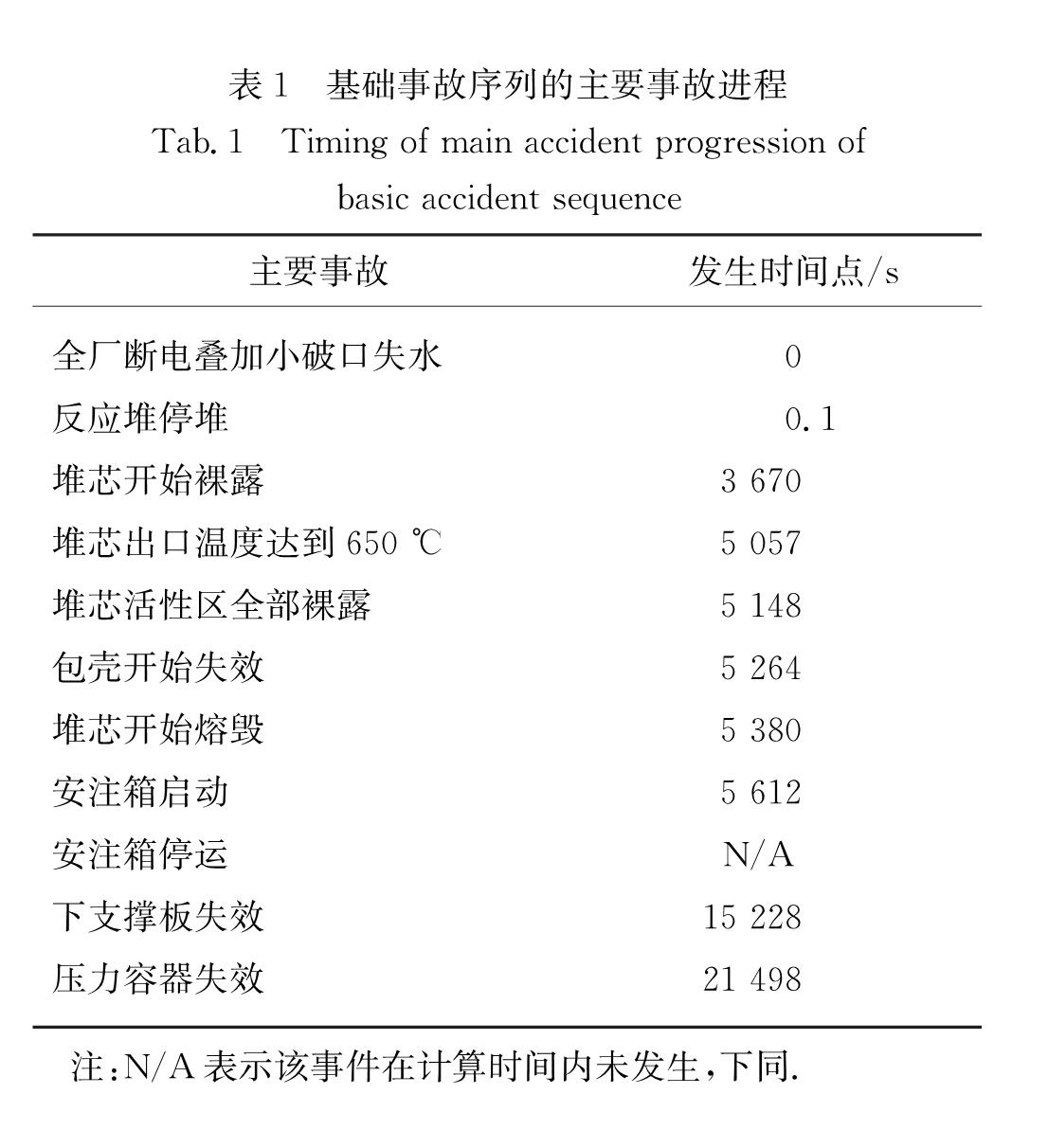

表1 基础事故序列的主要事故进程<br/>Tab.1 Timing of main accident progression ofbasic accident sequence

表1 基础事故序列的主要事故进程
Tab.1 Timing of main accident progression ofbasic accident sequence

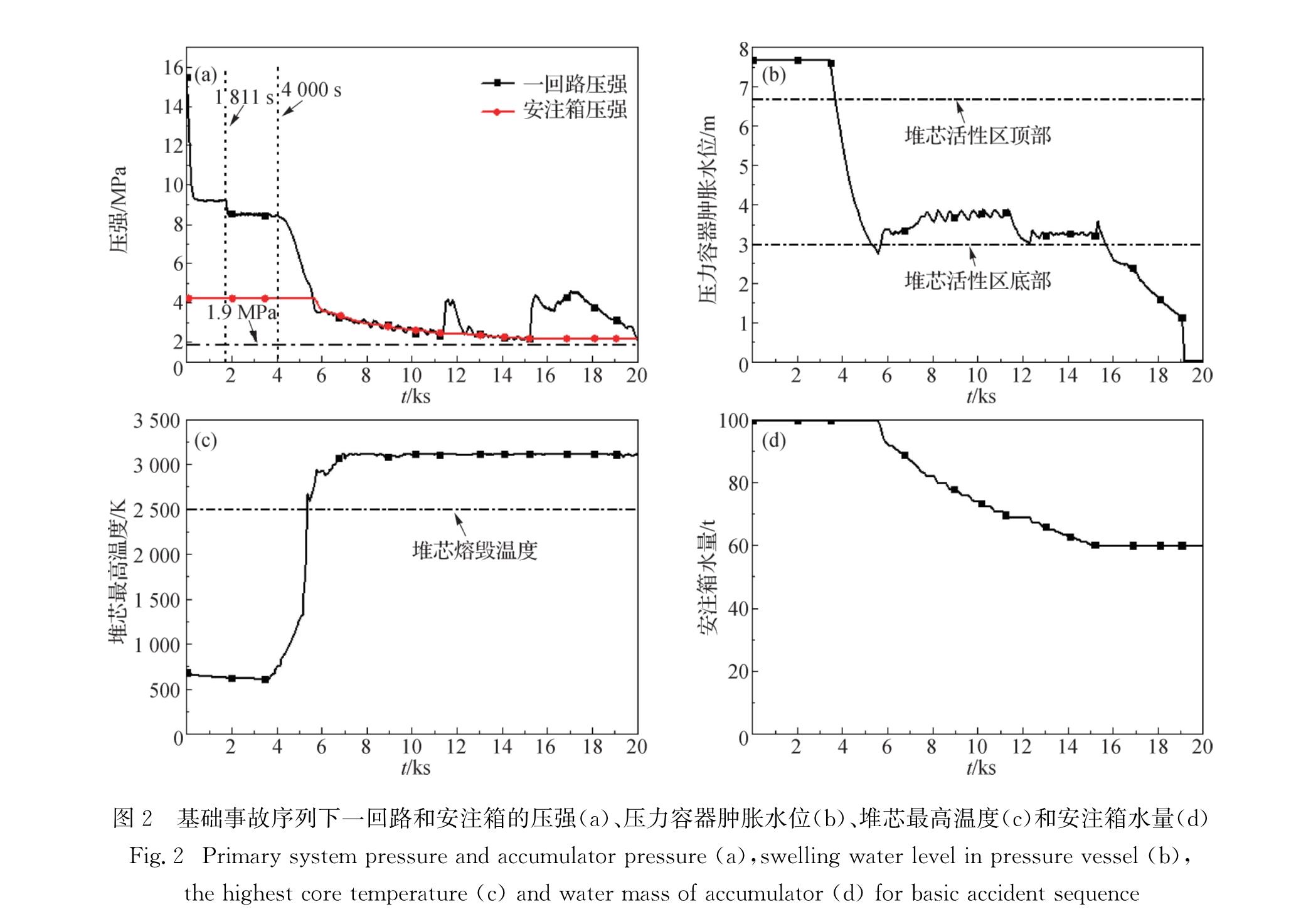

图2 基础事故序列下一回路和安注箱的压强(a)、压力容器肿胀水位(b)、堆芯最高温度(c)和安注箱水量(d)<br/>Fig.2 Primary system pressure and accumulator pressure(a),swelling water level in pressure vessel(b), the highest core temperature(c)and water mass of accumulator(d)for basic accident sequence

图2 基础事故序列下一回路和安注箱的压强(a)、压力容器肿胀水位(b)、堆芯最高温度(c)和安注箱水量(d)
Fig.2 Primary system pressure and accumulator pressure(a),swelling water level in pressure vessel(b), the highest core temperature(c)and water mass of accumulator(d)for basic accident sequence

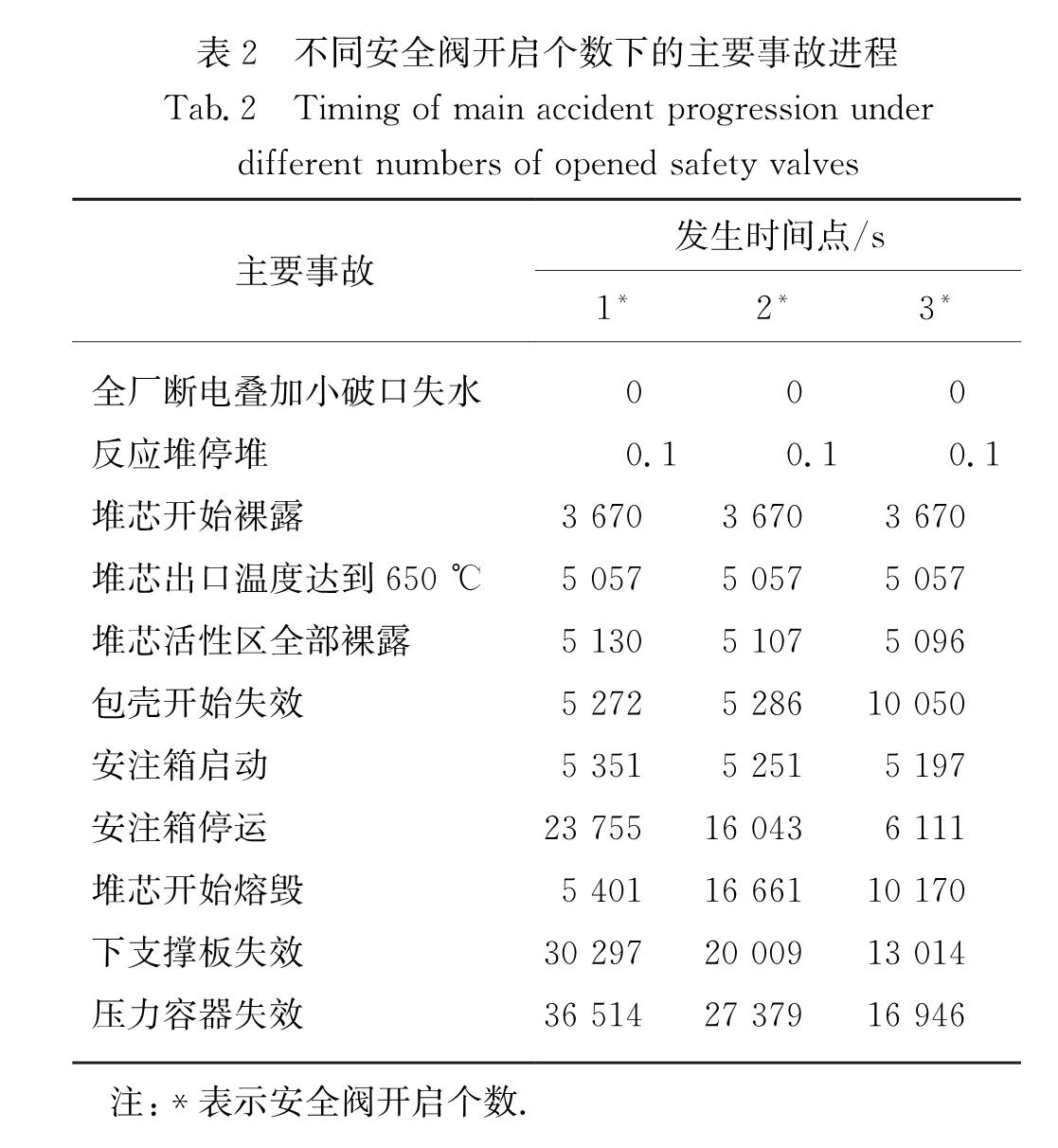

表2 不同安全阀开启个数下的主要事故进程<br/>Tab.2 Timing of main accident progression under different numbers of opened safety valves

表2 不同安全阀开启个数下的主要事故进程
Tab.2 Timing of main accident progression under different numbers of opened safety valves

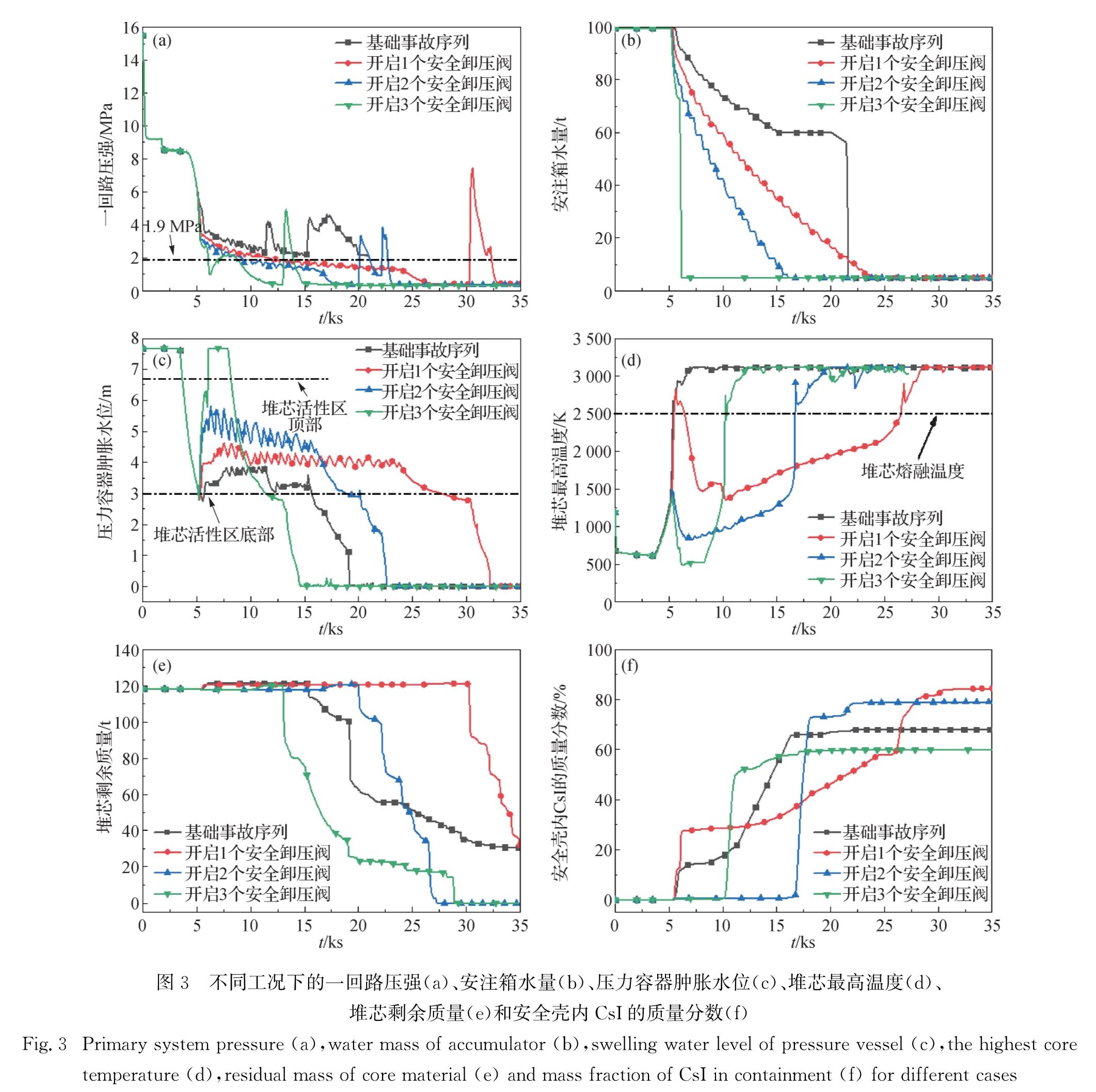

$图3 不同工况下的一回路压强(a)、安注箱水量(b)、压力容器肿胀水位(c)、堆芯最高温度(d)、堆芯剩余质量(e)和安全壳内CsI的质量分数(f)<br/>Fig.3 Primary system pressure(a),water mass of accumulator(b),swelling water level of pressure vessel(c),the highest core temperature(d),residual mass of core material(e)and mass fraction of CsI in containment(f)for different cases$

图3 不同工况下的一回路压强(a)、安注箱水量(b)、压力容器肿胀水位(c)、堆芯最高温度(d)、堆芯剩余质量(e)和安全壳内CsI的质量分数(f)
Fig.3 Primary system pressure(a),water mass of accumulator(b),swelling water level of pressure vessel(c),the highest core temperature(d),residual mass of core material(e)and mass fraction of CsI in containment(f)for different cases

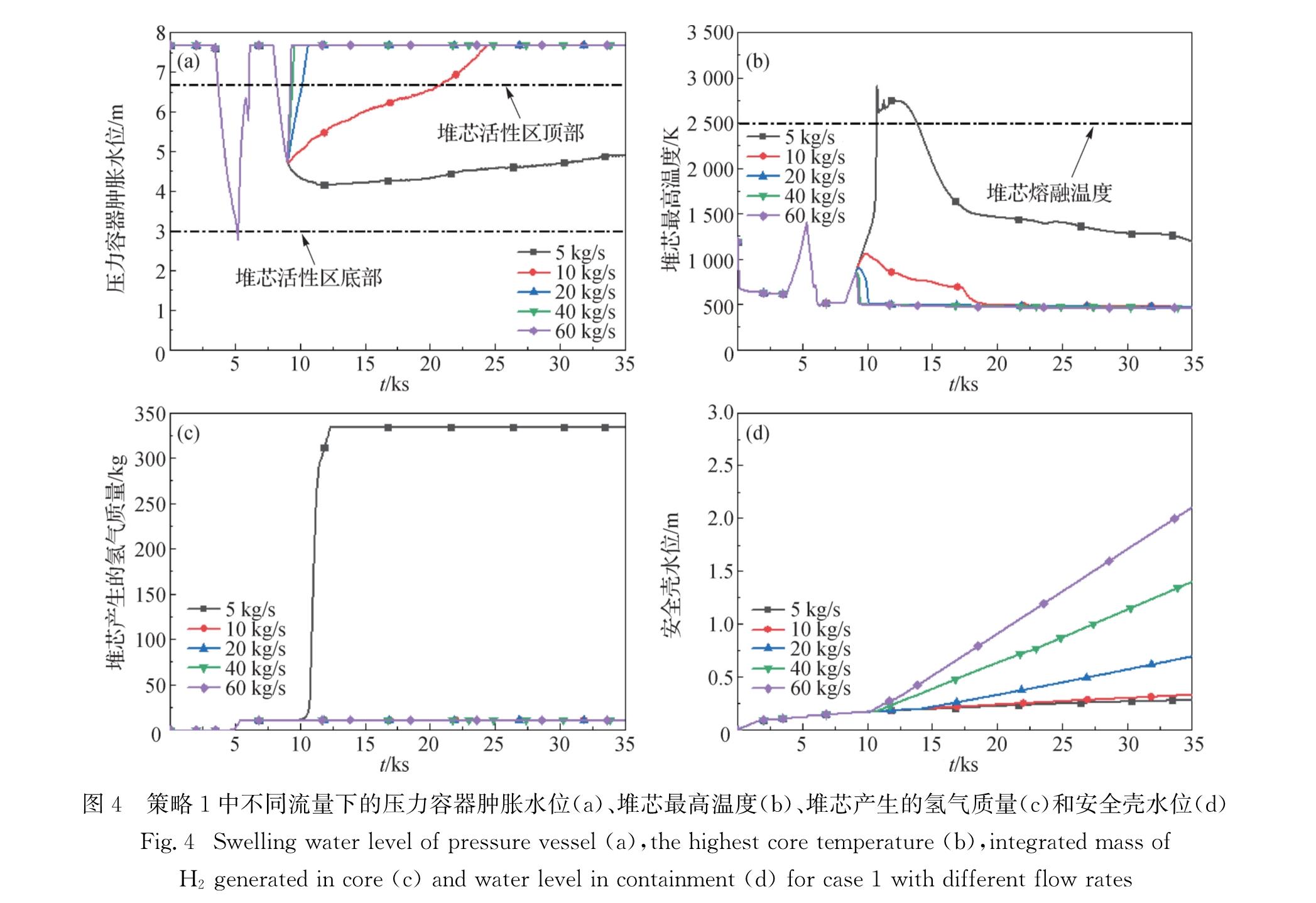

图4 策略1中不同流量下的压力容器肿胀水位(a)、堆芯最高温度(b)、堆芯产生的氢气质量(c)和安全壳水位(d)<br/>Fig.4 Swelling water level of pressure vessel(a),the highest core temperature(b),integrated mass of H2 generated in core(c)and water level in containment(d)for case 1 with different flow rates

图4 策略1中不同流量下的压力容器肿胀水位(a)、堆芯最高温度(b)、堆芯产生的氢气质量(c)和安全壳水位(d)
Fig.4 Swelling water level of pressure vessel(a),the highest core temperature(b),integrated mass of H2 generated in core(c)and water level in containment(d)for case 1 with different flow rates

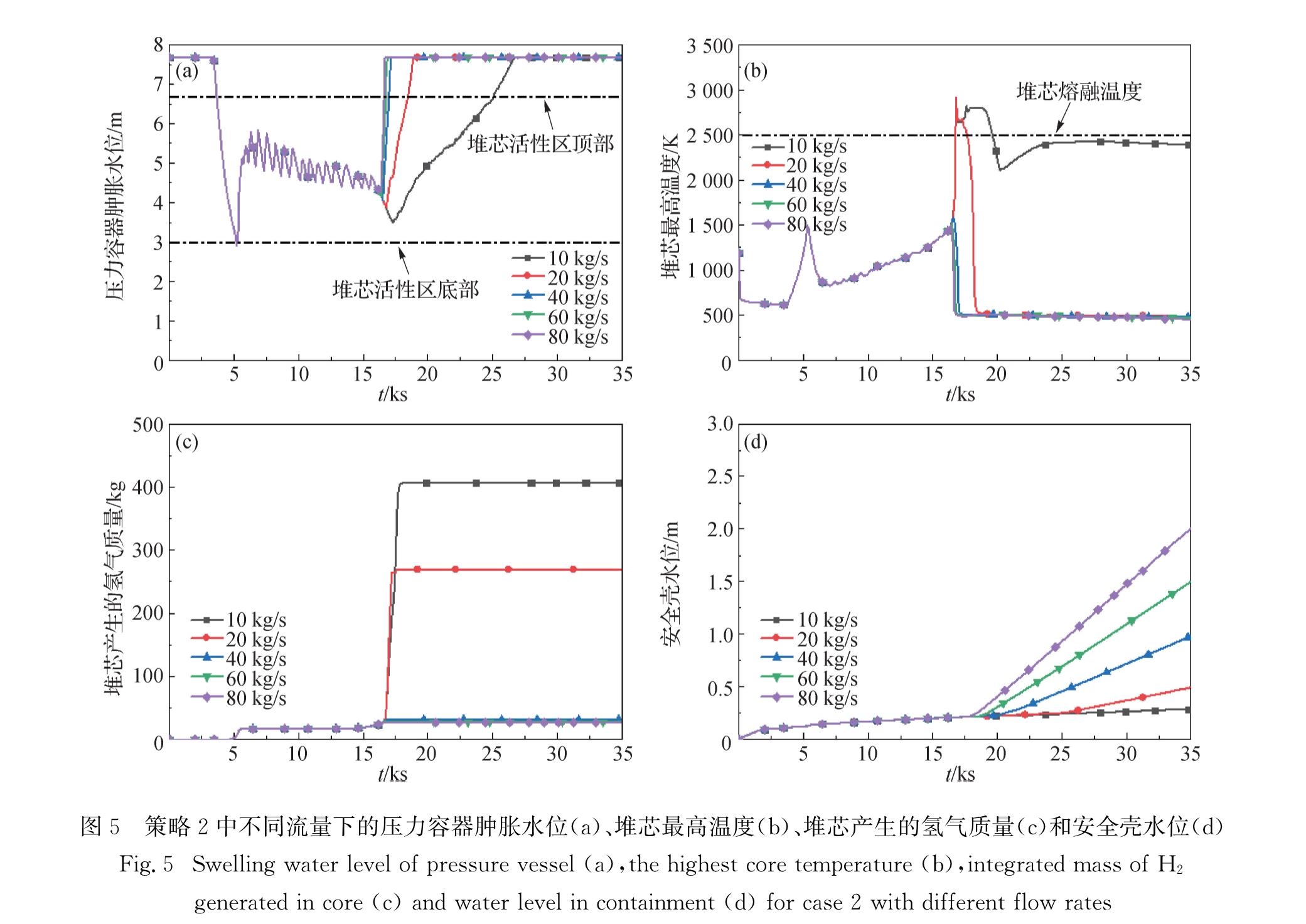

图5 策略2中不同流量下的压力容器肿胀水位(a)、堆芯最高温度(b)、堆芯产生的氢气质量(c)和安全壳水位(d)<br/>Fig.5 Swelling water level of pressure vessel(a),the highest core temperature(b),integrated mass of H2 generated in core(c)and water level in containment(d)for case 2 with different flow rates

图5 策略2中不同流量下的压力容器肿胀水位(a)、堆芯最高温度(b)、堆芯产生的氢气质量(c)和安全壳水位(d)
Fig.5 Swelling water level of pressure vessel(a),the highest core temperature(b),integrated mass of H2 generated in core(c)and water level in containment(d)for case 2 with different flow rates

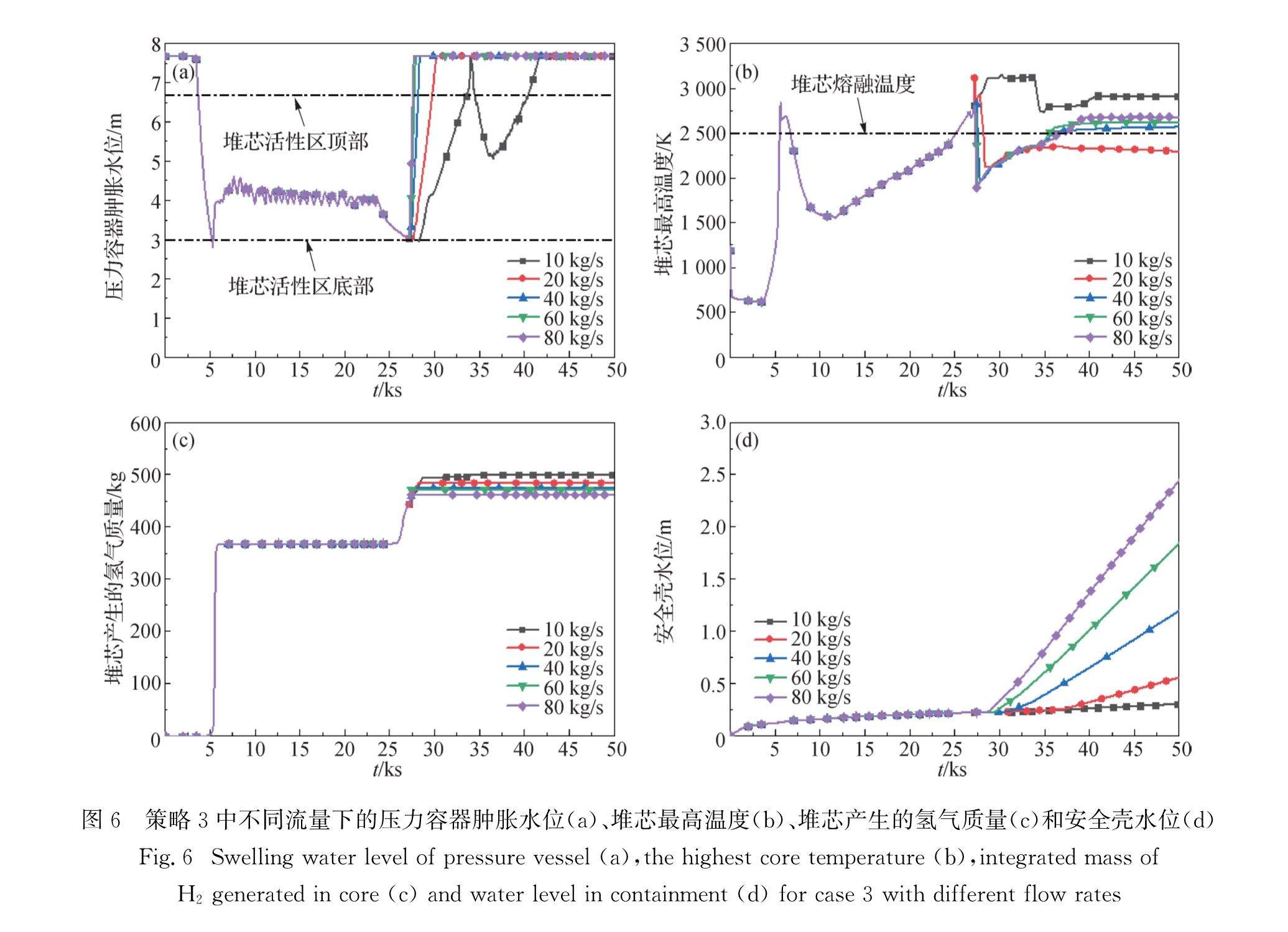

图6 策略3中不同流量下的压力容器肿胀水位(a)、堆芯最高温度(b)、堆芯产生的氢气质量(c)和安全壳水位(d)<br/>Fig.6 Swelling water level of pressure vessel(a),the highest core temperature(b),integrated mass of H2 generated in core(c)and water level in containment(d)for case 3 with different flow rates

图6 策略3中不同流量下的压力容器肿胀水位(a)、堆芯最高温度(b)、堆芯产生的氢气质量(c)和安全壳水位(d)
Fig.6 Swelling water level of pressure vessel(a),the highest core temperature(b),integrated mass of H2 generated in core(c)and water level in containment(d)for case 3 with different flow rates

[1] INOUE K,HOSODA M,SUGINO M,et al.Environ-mental radiation at Izu-Oshima after the Fukushima Daiichi nuclear power plant accident[J].Radiation Protection Dosimetry,2012,152(1/2/3):234-237.
[2] 张力.日本福岛核电站事故对安全科学的启示[J].中国安全科学学报,2011,21(4):3-6.
[3] PARK R J,HONG S W.Effect of SAMG entry condition on operator action time for severe accident mitigation[J].Nuclear Engineering and Design,2011,241(5):1807-1812.
[4] 孙吉良,肖岷,黄辉章,等.大亚湾核电站严重事故管理导则[J].核动力工程,2003,24(增2):5-8,20.
[5] JEON I S,HAN S H,KANG S H,et al.Development of a feed-and-bleed operation strategy with hybrid-SIT under low pressure condition of PWR[J].Nuclear Engineering and Design,2017,314:150-164.
[6] CHATTERJEE B,MUKHOPADHYAY D,LELE H G,et al.Severe accident management strategy verification for VVER-1000(V320)reactor[J].Nuclear Engineering and Design,2011,241(9):3977-3984.
[7] SONG J,HUH C,SUH N.Improvement of molten core cooling strategy in a severe accident management guideline[J].Nuclear Technology,2012,178(3):258-266.
[8] PARK S Y,AHN K I.Evaluation of an accident mana-gement strategy of emergency water injection using fire engines in a typical pressurized water reactor[J].Nuclear Engineering and Technology,2015,47(6):719-728.
[9] PARK J W,SEOL W C.Considerations for severe accident management under extended station blackout conditions in nuclear power plants[J].Progress in Nuclear Energy,2016,88:245-256.
[10] CHANG R,SCHAPEROW J,GHOSH T,et al.State-of-the-art-reactor consequence analyses(SOARCA)report[R].North Bethesda:Nuclear Regulatory Commission,2012:153-157.
[11] HU L,ZHANG Y P,LI L Z,et al.Investigation of severe accident scenario of PWR response to LOCA along with SBO[J].Progress in Nuclear Energy,2015,83:159-166.
[12] GÓMEZ-GARCÍA-TORAÑO I,SÁNCHEZ-ESPINOZA V,STIEGLITZ R,et al.Analysis of primary bleed and feed strategies for selected SBLOCA sequences in a German Konvoi PWR using ASTEC V2.0[J].Annals of Nuclear Energy,2017,110:818-832.
[13] 中国广东核电集团有限公司.中国改进型压水堆核电站CPR1000简介[J].现代电力,2006,23(5):36-38.
[14] ELECTRIC POWER RESEARCH INSTITUTE.MAAP4 applications guidance:desktop reference for using MAAP4 software,EPRI TR-1020236 [R].Palo Alto:Electric Power Research Institute,2005.
[15] 黄志翱,张泽枫,缪惠芳,等.严重事故下蒸汽发生器传热管诱发破裂现象及其缓解策略分析[J].厦门大学学报(自然科学版),2019,58(2):260-268.
[16] ABE S.The Fukushima-1 nuclear power plant accident[M]∥The 2011 Fukushima nuclear power plant accident:how and why it happened.[S.l.]:Woodhead Publishing,2015:1-20.
